Ball Valves
Ball Valves – Multi Valve Corp
Ball Valves are among the most widely used industrial valves, known for their simple design, durability, and reliable shut‑off performance. They use a spherical ball with a bore to control flow, offering quick operation and tight sealing. At Multi Valve Corp, our Ball Valves are engineered for versatility, efficiency, and safety, serving industries such as oil & gas, chemical processing, power generation, and water treatment.
Performance & Reliability
Quick Operation – quarter‑turn design for fast open/close cycles.
Tight Sealing – precision seats minimize leakage.
Low Maintenance – simple construction reduces wear and service needs.
Versatile Use – suitable for liquids, gases, and slurries.
Durability – built for high pressure and demanding environments.

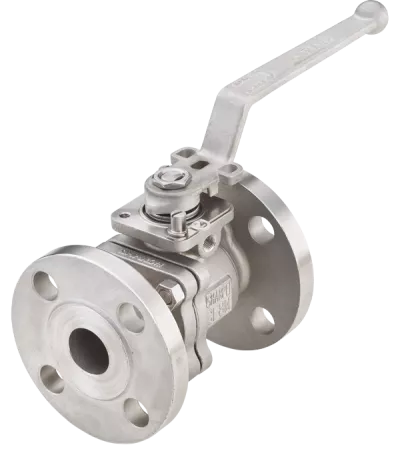

Full Port Ball Valve
Designed with a larger bore, the Full Port Ball Valve allows maximum flow capacity with minimal pressure drop, making it ideal for applications requiring high efficiency and unrestricted flow.
Mini Specs
Size Range: 1/2″ – 24″
Pressure Classes: ASME 150# – 1500#

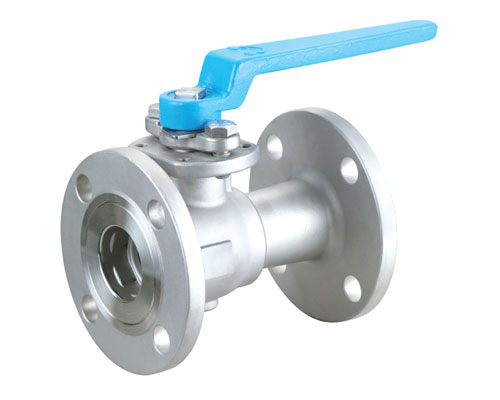

Reduced Port Ball Valve
Compact and economical, the Reduced Port Ball Valve offers reliable shut‑off with a slightly higher pressure loss compared to full port designs. It is well‑suited for general industrial applications where space and cost efficiency are priorities.
Mini Specs
Size Range: 1/2″ – 20″
Pressure Classes: ASME 150# – 1500#
Material Engineering
Our Ball Valves are manufactured from premium cast steel, forged steel, and stainless steel, ensuring resilience against corrosion, high pressure, and extreme temperatures. Each valve undergoes strict inspection and testing to guarantee long‑term reliability in demanding industrial environments.
Specification
| Attribute | Details |
|---|---|
| Size Range | 1/2″ – 24″ |
| Pressure Classes | ASME 150# – 1500# |
| Types Available | Full Port, Reduced Port |
| Body Materials | Cast Steel, Forged Steel, Stainless Steel |
| End Connections | Flanged, Threaded, Welded |
